Sockets for Flat Test Packages

Data Sheets Request Form


Single In-Line Flat Test Package - Dual Flat Pack - J-Bend Lead Chip Carrier - Fiber Optic - Opto Electronic

Azimuth Electronics makes Sockets for Flat Test Packages. We can make custom sockets for your package. We are industry leader of Socket Manufacturing Delivering the Highest Quality Single In-line Flat Packages, Worldwide. From Design to Prototype to Production.

Contactors (9500-X-X) and corresponding Carriers (9000-X-X) must be purchased separately.


For further information on any of the Sockets for Flat Test please reach out to us

If you have any questions speak with a member of our team by contacting us here.

Looking for a custom-made product for your Package?

Contact us about our Flat Package Sockets for your Package

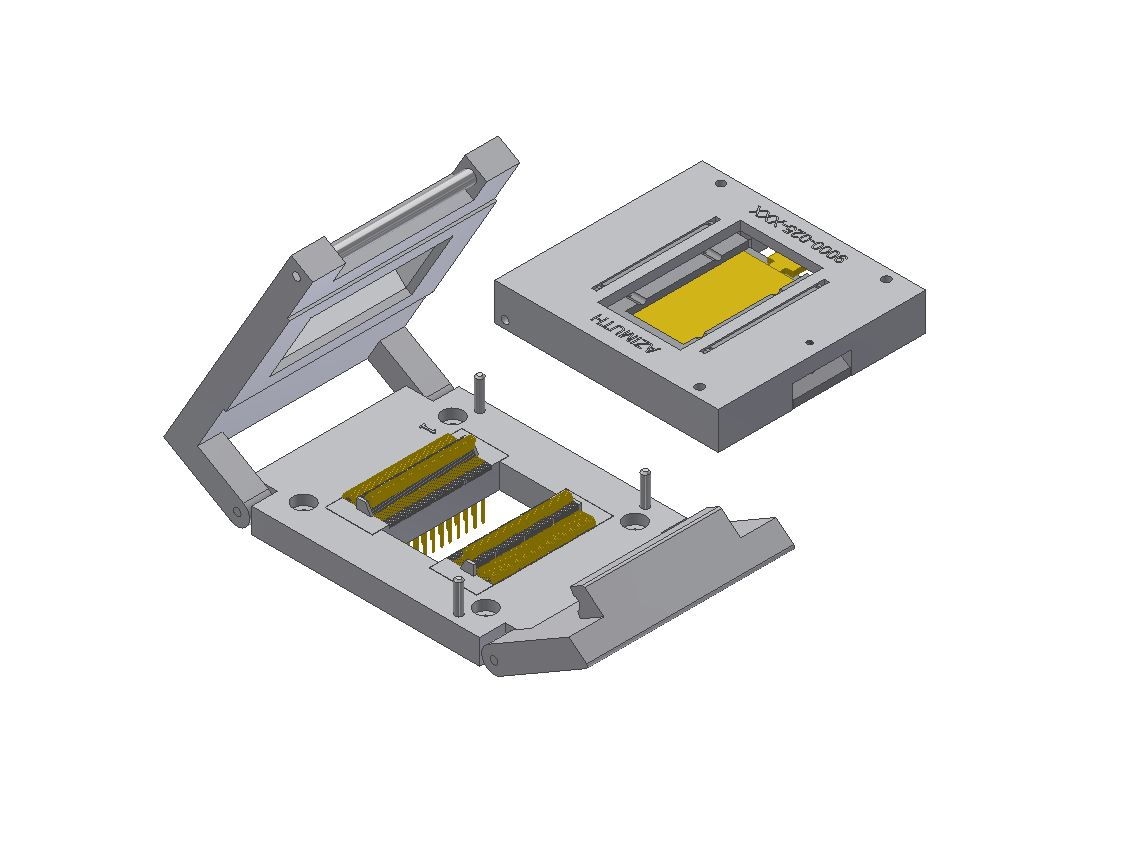

Carrier/Contactor Animation

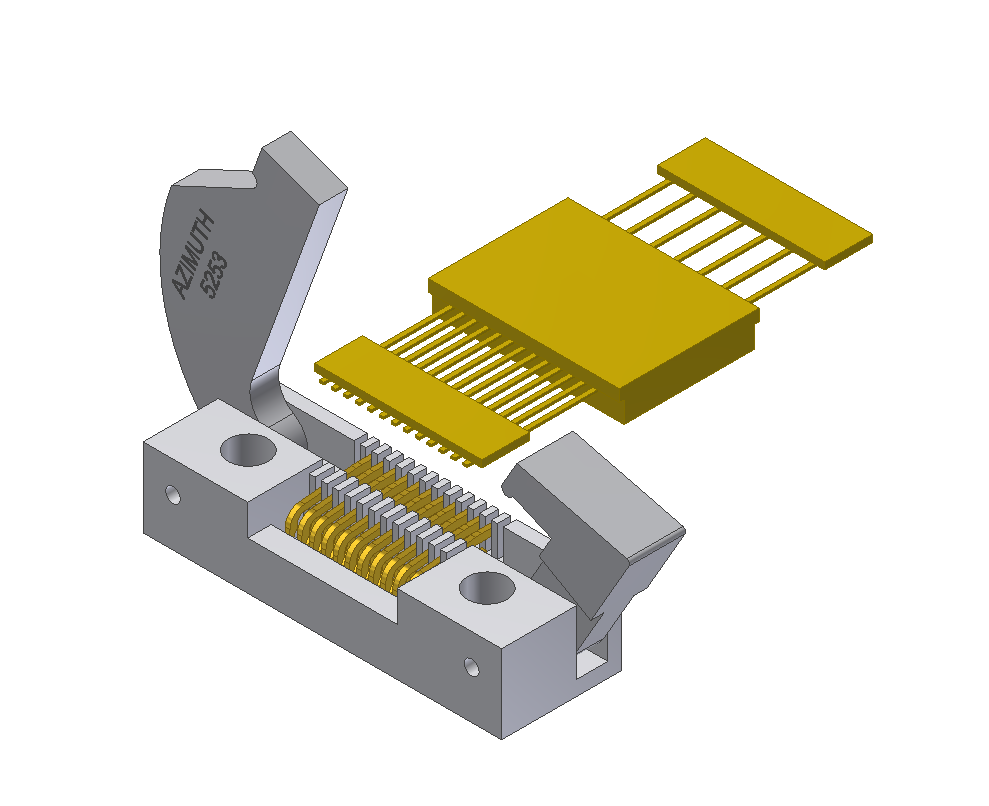

Single In-Line Animation



Single In-Line

Dual Flat Pack

J-Bend Lead Chip Carrier

Fiber Optic

Opto Electronic

Lead Count Pitch [mm] Leads Per Side Package Size Carrier Part Number Contactor Part Number
2 - 20 0.040 [1.02]; 0.060 [1.52] Variable 0.390 [9.91] x 1.00 [25.40] ~ 63079
3 0.050 [1.27] 3 ~ ~ 63182T / 63183T
4 0.050 [1.27] 4 ~ ~ 63067
4 0.200 [5.08] 2 0.360 [9.14] x 0.560 [14.22] ~ 6300 - 9T
4 0.200 [5.08] 2 0.295 [7.49] x 0.350 [8.89] ~ 6300 - 10T
5 0.100 {2.54] 5 ~ ~ 5253/5254 - 100 - 5
6 0.050 [1.27] 3 0.140 [3.56] x 0.180 [4.57] ~ 63124
6 0.050 [1.27] 3 0.295 [7.49] x 0.350 [8.89] ~ 6300 - 11T
7 0.100 {2.54] 7 ~ ~ 5253/5254 - 100 - 7
7 0.100 [2.54] 7 ~ ~ 5253/5254 - 100 - 7
7 0.100 [2.54] 7 ~ ~ 5250 - 100W - 7
8 0.100 [2.54] 4 0.320 [8.13] x 0.390 [9.91] ~ 63140
10 0.100 [2.54] 5 ~ ~ 6370 - 3
12 0.030 [0.76] 12 ~ ~ 5253 - 030 - 12
13 0.050 [1.27] 13 ~ ~ 5253/5254 - 050 - 13
14 0.100 [2.54] 7 ~ ~ 5253/5254 - 100 - 7
14 0.100 [2.54] 7 ~ ~ 5253 - 100W - 7
16 0.035 [0.89] 8 0.464 [11.79] x 0.728 [18.49] ~ 63155 - 2
16 0.100 [2.54] 8 0.710 [18.03] x 1.060 [26.92] 9000 - 100 - 16T ~
17 0.090 [2.29] 17 ~ ~ 5253/5254 - 090 - 17
22 0.0236 [0.60] 11 0.197 [5.0] x 0.682 [17.33] ~ 63213T
26 0.050 [1.27] 13 ~ ~ 5253/5254 - 050 - 13
30 0.050 [1.27] 15 1.090 [27.69] x 0.920 [23.37] ~ 6300 - 2
32 0.050 [1.27] 16 1.250 [31.75] x 1.000 [25.40] ~ 6151 Series
34 0.050 [1.27] 17 1.500 [38.10] x 1.500 [38.10] 9000 - 050 - 34 9500 - 050 - 34
40 0.025 [0.64] 20 0.850 [21.59] x 1.000 [25.40] 9000 - 025 - 40T 9500 - 025 - 40T
42 0.050 [1.27] 21 0.725 [18.42] x 1.140 [28.95] ~ 63185 - 1T
44 0.050 [1.27] 22 0.700 [17.78] x 1.050 [26.67] 9000 - 050 - 44 9500 - 050 - 44
44 0.050 [1.27] 22 0.800 [20.32] x 1.230 [31.24] 9000 - 050 - 44 9500 - 050 - 44
46 0.050 [1.27] 23 1.000 [25.40] x 1.250 [31.75] ~ 6151 Series
54 0.031 [0.80] 27 0.402 [1.020] x 0.890 [22.60] ~ 63035
56 0.031 [0.80] 28 0.850 [21.59] x 1.000 [25.40] 9000 - 80mm - 56 9500 - 80mm - 56
56 0.031 [0.80] 28 0.500 [12.70] x 1.000 [25.40] 9000 - 80mm - 56 - 1TM 9500 - 80mm - 56 - 1TM
60 0.050 [1.27] 30 ~ 6108 - 1, 6108 - 2, 6108 - 3 6108
64 0.050 [1.27] 32 ~ 6151D, 6151E 6151C
64 0.050 [1.27] 32 1.040 [26.42] x 1.980 [50.29] 9000 - 050 - 64T 9500 - 050 - 64T
66 0.026 [0.65] 33 0.402 [10.20] x 0.890 [22.60] ~ 63036
70 0.050 [1.27] 35 1.130 [28.70] x 1.800 [45.72] ~ 6300 - 7
72 0.025 [0.64] 36 1.340 [34.04] x 2.040 [51.72] 9000 - 025 - 72 9500 - 025 - 72
72 0.025 [0.635] 36 0.758 [19.25] x 1.040 [26.42] 9000 - 635mm - 72T 9500 - 635mm - 72T
72 0.050 [1.27] 36 2.030 [51.56] x 1.710 [43.43] 6151B 6151A
74 0.050 [1.27] 37 1.150 [29.21] x 2.050 [52.07] ~ 6151 Series
80 0.050 [1.27] 40 ~ 6108 - 1, 6108 - 2, 6108 - 3 6108
80 0.050 [1.27] 40 1.000 [25.40] x 2.300 [58.42] ~ 6151 Series
100 0.025 [0.64] 50 1.715 [43.56] x 1.105 [28.07] 9000 - 025 - 100 9500 - 025 - 100
Variable 0.025 [0.64] ~ ~ ~ 5253/5254 - 025 - X
Variable 0.0275 [0.70] ~ ~ ~ 5253/5254 - 70mm - X
Variable 0.030 [0.76] ~ ~ ~ 5253/5254 - 030 - X
Variable 0.031 [0.80] ~ ~ ~ 5253/5254 - 80mm - X
Variable 0.036 [0.925] ~ ~ ~ 5253/5254 - 925mm - X
Variable 0.039 [1.00] ~ ~ ~ 5253/5254 - 1.00mm - X
Variable 0.040 [1.02] ~ ~ ~ 5253/5254 - 58 - X
Variable 0.040 [1.02] ~ ~ ~ 5253/5254 - 040 - X
Variable 0.047 [1.20] ~ ~ ~ 5253/5254 - 1.200mm - X
Variable 0.050 [1.27] ~ ~ ~ 5253/5254 - 050 - X
Variable 0.050 [1.27] ~ ~ ~ 6151 Series
Variable 0.090 [2.29] ~ ~ ~ 5253/5254 - 090 - X
Variable 0.100 [2.54] ~ ~ ~ 5253/5254 - 100 - X
Variable 0.100 [2.54] ~ ~ ~ 5253/5250 - 100W - X
Variable 0.125 [3.18] ~ ~ ~ 5253/5250 - 125W - X
Variable 0.150 [3.81] ~ ~ ~ 5253/5250 - 150W - X
Variable 0.160 [4.06] ~ ~ ~ 5253/5250 - 160W - X
Variable 0.175 [4.45] ~ ~ ~ 5253/5250 - 175W - X
Variable 0.200 [5.08] ~ ~ ~ 5253/5250 - 200W - X
