Quad Flat Package Sockets for your package

Data Sheets Request Form

Azimuth Electronics makes Sockets for your Quad Flat Package. We can make custom sockets for your package. Socket Manufacturer Delivering the Highest Quality Quad Flat Packages, Worldwide. From Design to Prototype to Production, We Welcome the Challenges and Opportunities We Face From Ongoing Technological Advancements.

Our Quad Flat Packages - Carrier and Contactor and Carrierless are available for any number of leads, lead widths, and lead spacing. Some socket options include low profile, high current contacts and interchangeable inserts.

Contactors (8500-X-X) and corresponding Carriers (8000-X-X) must be purchased separately.

For further information on any of our Quad Flat Packages listed below, click the thumbnail to be directed to the catalog page.

If you have any questions speak with a member of our team by contacting us here.

Looking for a custom-made product? Request a Quote

Contact us about our Quad Flat Package Sockets for your Package

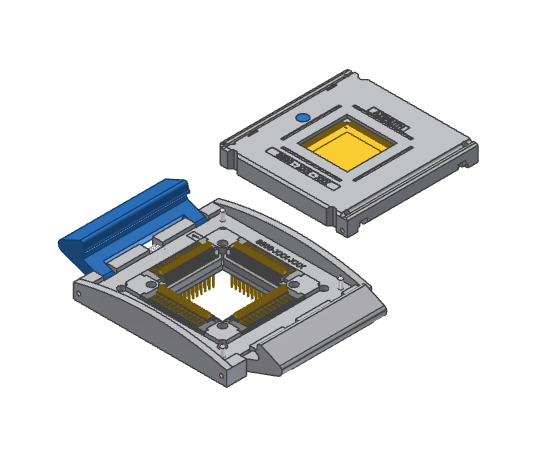

Contactor/Carrier Socket Animation

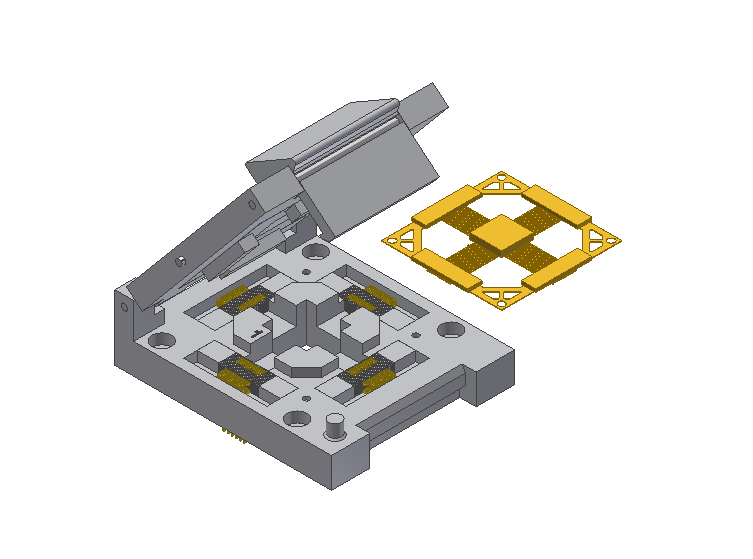

Carrierless Socket Animation




 Quad Flat Pack - Carrier and Contactor

Quad Flat Pack - Carrierless

Lead Count Pitch [mm] Leads Per Side Package Size Carrier Part Number Contactor Part Number
6 - 8 0.040 [1.02] 3 x 4 0.360 [9.14] x 0.480 [12.19] ~ 63086
12 0.050 [1.27] / Variable 1 x 5 0.400[10.16] x 0.555 [14.10] ~ 63077
16 0.105 [2.67] / 0.153 [3.89] 3 x 5 0.590 [14.99] x 1.070 [27.18] ~ 63076
18 - 22 0.050 [1.27] 4 x 7 0.590 [14.99] x 0.622 [15.80] ~ 63073
24 0.050 [1.27] 6 0.390 [9.91] 8000 - 050 - 24T 8500 - 050 - 24T
24 0.050 [1.27] 6 0.390  [9.91] 8000 - 050 - 24T 8500 - 050 - 24T
24 0.050 [1.27] 6 0.390 [9.91] 8000 - 65mm - 24 8500 - 65mm - 24ATM
28 0.027 [0.70] 7 0.262 [6.65] 8100 - 70mm - 28T 8150 - 70mm - 28T
32 0.0256 [0.65] 8 0.390 [9.91] 8000 - 65mm - 32T 8500 - 65mm - 32T
32 0.0256 [0.65] 8 0.390 [9.91] 8000 - 65mm - 32 8500 - 65mm - 32ATM
32 0.030 [0.76] 8 0.550 [13.97] 8000 - 030 - 32 8500 - 030 - 32
40 0.040 [1.02] 10 0.730 [18.54] 8000 - 040 - 40 8500 - 040 - 40
40 0.050 [1.27] 10 1.510 [38.35] 8000 - 050 - 40T 8500 - 050 - 40T
44 0.0256 [0.65] 11 0.500 [12.70] 8000 - 65mm - 44T 8500 - 65mm - 44T
44 0.0394 [1.00] 11 0.730 [18.54] 8000 - 1.00mm - 44 8500 - 1.00mm - 44
44 0.050 [1.27] 11 1.050 [6.67] 8000 - 050 - 44 6155 - 5
44 0.050 [1.27] 11 0.780 [19.81] 8000 - 050 - 44 - 1T 8500 - 050 - 44 - 1T
52 0.0256 [0.65] 13 0.390 [9.91] 8000 - 65mm - 52 8500 - 65mm - 52
52 0.0256 [0.65] 13 0.390 [9.91] 8000 - 65mm - 52 8500 - 65mm - 52ATM
52 0.040 [1.02] 13 0.620 [15.75] 8000 - 040 - 52 8500 - 040 - 52
52 0.050 [1.27] 13 1.050 [6.67] 8000 - 050 - 52 8500 - 050 - 52
54 0.0315 [0.80] 27 0.402 [10.20] x .890 [22.60] ~ 63035
56 0.050 [1.27] 10 x 18 0.800 [20.32] x 1.050 [26.67] 8000 - 050 - 56 8500 - 050 - 56
56 0.050 [1.27] 14 1.220 [30.99] 8000 - 050 - 56A 8500 - 050 - 56A
64 0.0197 [.50] 16 0.394 [10.00] 8000 - 50mm - 64T 8500 - 50mm - 64T
64 0.025 [0.635] 16 0.600 [15.24] 8000 - 025 - 64 8500 - 025 - 64
64 0.0256 [0.65] 16 0.600 [15.24]. 8000 - 65mm - 64T 8500 - 65mm - 64T
64 0.0315 [0.80] 16 0.600 [15.24] 8000 - 80 - 64 8500 - 80 - 64
64 0.040 [1.02] 16 0.600 [15.24] 8000 - 1.016mm - 64T 8500 - 1.016mm - 64T
64 0.050 [1.27] 16 1.000 [25.40] 8000 - 050 - 64 8500 - 050 - 64
66 0.0256 [0.65] 33 0.402 [10.20] x 0.890 [22.60] ~ 63036
68 0.050 [1.27] 17 1.000 [25.40] ~ 63114
68 0.050 [1.27] 17 1.500 [38.10] 8000 - 050 - 68 8500 - 050 - 68
68 0.050 [1.27] 17 1.670 [42.42] 8000 - 050 - 68 - 1 8500 - 050 - 68 - 1
68 0.050 [1.27] 17 1.110 [28.19] ~ 63114 - 9T
80 0.040 [1.02] 20 1.000 [25.40] ~ 63114 - 4T
80 0.050 [1.27] 20 1.500 [38.10] 8000 - 050 - 80 8500 - 050 - 80
82 0.050 [1.27] 20 x 21 1.500 [38.10] 8000 - 050 - 82 8500 - 050 - 82
84 0.025 [0.635] 21 1.010 [25.65] 8000 - 635mm - 84 8500 - 635mm - 84
84 0.040 [1.02] 21 1.040 [26.42]  8000 - 040 - 84 8500 - 040 - 84
84 0.050 [1.27] 21 1.500 [38.10] 8000 - 050 - 84 8500 - 050 - 84
64 0.0197 [.50] 16 0.394 [10.00] 8000 - 50mm - 88T 8500 - 50mm - 88T
96 0.050 [1.27] 24 1.680 [42.67] 8000 - 050 - 96 8500 - 050 - 96
96 0.050 [1.27] 24 1.500 [38.10] 8000 - 050 - 96A 8500 - 050 - 96A
100 0.0197 [0.50] 25 0.770 [19.56] 8000 - 50mm - 100T 8500 - 50mm - 100T
64 0.0197 [.50] 16 0.394 [10.00] 8000 - 50mm - 100 - 1T 8500 - 50mm - 100 - 1T
100 0.020 [0.51] 25 0.460 [11.68] 8000 - 020 - 100 8500 - 020 - 100
100 0.025 [0.635] 25 1.000 [25.40] 8000 - 025 - 100T 8500 - 025 - 100T
100 0.025 [0.635] 25 1.000 [25.40] 8000 - 025 - 100 - 4TM 8500 - 025 - 100 - 4TM
100 0.025 [0.635] 25 1.080 [27.43] 8000 - 635mm - 100T 8500 - 635mm - 100T
100 0.025 [0.635] 25 1.330 [33.78] 8000 - 025 - 100 - 3T 8500 - 025 - 100 - 3T
100 0.050 [1.27] 25 1.500 [38.10] 8000 - 050 - 100 8500 - 050 - 100
100 0.050 [1.27] 25 1.370 [34.80] 8000 - 050 - 100R 8500 - 050 - 100R
106 0.025 [0.635] 19 x 34 0.700 [17.78] x 1.170 [29.72] 8000 - 025 - 106RT 8500 - 025 - 106RT
112 0.050 [1.27] 20 x 36 1.280 [32.51] x 2.080 [52.83] 8000 - 050 - 112 8500 - 050 - 112
128 0.0197 [0.50] 32 0.880 [22.35] ~ 63166T
128 0.025 [0.635] 23 x 41 0.700 [17.78] x 1.170 [29.72] 8000 - 635mm - 128RT 8500 - 635mm - 128RT
128 0.025 [0.635] 23 x 41 0.700 [17.78] x 1.170 [29.72] 8000 - 635mm - 128 - 1RT 8500 - 635mm - 128RT
132 0.025 [0.635] 33 0.875 [22.22] ~ 63146
132 0.025 [0.635] 33 1.040 [26.42] 6154A (132) 6155
132 0.025 [0.635] 33 1.500 [38.10] 8000 - 025 - 132 8500 - 025 - 132
132 0.025 [0.635] 33 1.000 [25.40] 8000 - 025 - 132 - 2 8500 - 025 - 132 - 2
132 0.025 [0.635] 33 0.940 [23.88] 8000 - 025 - 132 - 3T 8500 - 025 - 132 - 3T
132 0.040 [1.02] 33 1.800 [45.72] 8000 - 040 - 132 8500 - 040 - 132
132 0.060 [1.52] 33 2.360 [59.94] ~ 63114 - 7TM
140 0.025 [0.635] 35 1.680 [42.67] 8000 - 025 - 140 8500 - 025 - 140
144 0.025 [0.635] 36 1.500 [38.10]  8000 - 025 - 144 8500 - 025 - 144
160 0.0256 [0.65] 40 1.102 [28.00] 8000 - 65mm - 160T 8500 - 65mm - 160T
164 0.025 [0.635] 41 1.500 [38.10] 8000 - 025 - 164 8500 - 025 - 164
164 0.025 [0.635] 41 1.120 [28.45] 8000 - 025 - 164 - 2 8500 - 025 - 164 - 2
172 0.025 [0.635] 43 1.500 [38.10] 8000 - 025 - 172 - 1 8500 - 025 - 172 - 1
172 0.025 [0.635] 43 1.500 [38.10] 8000 - 025 - 172 - 5 8500 - 025 - 172 - 5
172 0.025 [0.635] 43 1.160 [29.46] 8000 - 025 - 172 - 9T 8500 - 025 - 172 - 2A
176 0.0197 [0.50] 44 1.050 [26.67] 8000 - 50mm - 176T 8500 - 50mm - 176T
180 0.025 [0.635] 45 1.230 [31.24] 8000 - 025 - 180 - 2 8500 - 025 - 180 - 2
180 0.030 [0.76] 36 x 54 1.210 [30.73] x 1.750 [44.45] 8000 - 030 - 180 8500 - 030 - 180
196 0.025 [0.635] 49 1.500 [38.10] 8000 - 025 - 196 - 1 8500 - 025 - 196 - 1
196 0.025 [0.635] 49 1.450 [36.83] 8000 - 025 - 196 - 2D 8500 - 025 - 196 - 2D
196 0.025 [0.635] 49 1.650 [41.91] 8000 - 025 - 196 - 1FT 8500 - 025 - 196 - 1FT
200 0.0315 [0.80] 50 2.730 [69.34] 8000 - 80mm - 200 8500 - 80mm - 200
208 0.0197 [0.50] 52 1.152 [29.26] 8000 - 50 - 208T 8500 - 50 - 208TM
220 0.025 [0.635] 55 1.510 [38.35] 8000 - 635mm - 220T 8500 - 635mm - 220T
224 0.025 [0.635] 56 1.680 [42.67] 8000 - 025 - 224 - 2 8500 - 025 - 224 - 2
240 0.0197 [0.50] 60 1.500 [38.10] 8000 - 50mm - 240T 8500 - 50mm - 240T
240 0.025 [0.635] 60 1.560 [39.62] 8000 - 025 - 240 8500 - 025 - 240
256 0.0197 [0.50] 64 1.800 [45.72] 8000 - 50mm - 256 8500 - 50mm - 256
256 0.020 [0.51] 64 1.900 [48.26] 8000 - 020 - 256 - 1 8500 - 020 - 256 - 1
256 0.020 [0.51] 64 1.900 [48.26] 8000 - 020 - 256 - 3 8500 - 020 - 256 - 3
256 0.030 [0.76] 64 1.900 [48.26] 8000 - 030 - 256 - 1 8500 - 030 - 256 - 1
260 0.0315 [0.80] 65 2.730 [69.34] 8000 - 80mm - 260 8500 - 80mm - 260
268 0.025 [0.635] 54 x 80 1.640 [41.65] x 2.290 [58.17] 8000 - 025 - 268 8500 - 025 - 268
274 0.025 [0.635] 50 x 87 1.620 [41.15] x 2.550 [64.77] 8000 - 025 - 274 - 2T 8500 - 025 - 274 - 2T
274 0.025 [0.635] 50 x 87

1.620 [41.15] x 2.550 [64.77]

 8000 - 025 - 274 - 3T 8500 - 025 - 274 - 3T
280 0.0315 [0.80] 70 2.730 [69.34]  8000 - 80mm - 280 8500 - 80mm - 280
296 0.0256 [0.65] 74 2.570 [65.28] ~ 6346 - 1
298 0.035 [0.89] 63 x 86 2.080 [52.83] x 2.880 [73.15] 8000 - 035 - 298 8500 - 035 - 298
300 0.0315 [0.80] 75 2.730 [69.34] 8000 - 80mm - 300 8500 - 80mm - 300
304 0.0197 [0.50] 76 1.800 [45.72] 8000 - 50 - 304 8500 - 50 - 304
304 0.020 [0.51] 76 1.800 [45.72] 8000 - 020 - 304 - 1 8500 - 020 - 304 - 1
320 0.0197 [0.50] 80 1.749 [44.42] 8000 - 50 - 320T 8500 - 50 - 320T
320 0.0256 [0.65] 80 2.570 [65.28] ~ 6346 - 2
344 0.0256 [0.65] 86 2.570 [65.28] ~ 6346 - 3
352 0.0197 [0.50] 88 1.909 [48.49] 8000 - 50 - 352T 8500 - 50 - 352T
368 0.0256 [0.65] 92 2.570 [65.28] ~ 6346 - 4
368 0.030 [0.76] 59 x 125 2.050 [52.07] x 4.050 [102.87] 8000 - 030 - 368 8500 - 030 - 368
392 0.0256 [0.65] 98 2.570 [65.28] ~ 6346 - 5
408 0.025 [0.635] 102 2.930 [74.42] 8000 - 025 - 408 8500 - 025 - 408
442 0.025 [0.635] 71 x 150 2.050 [52.07] x 4.050 [102.87] 8000 - 025 - 442 8500 - 025 - 442
840 0.050 [1.27] 133 / 287 2.145 [54.48] x 4.145 [105.28] ~ 63040 - 840 - 4
